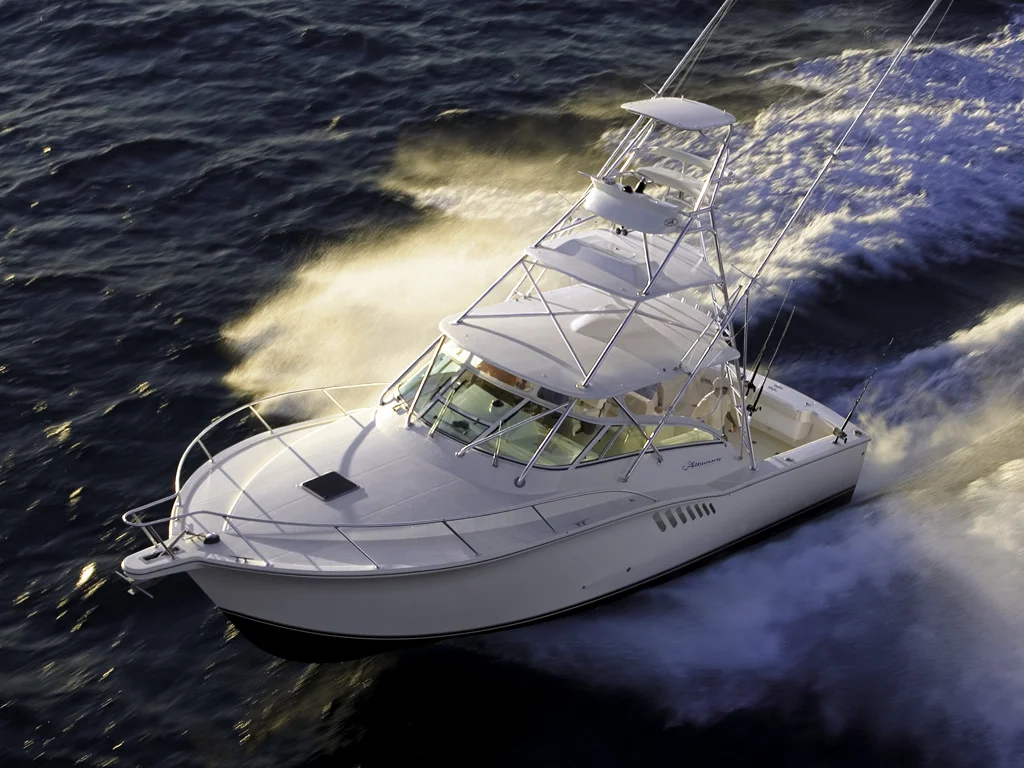

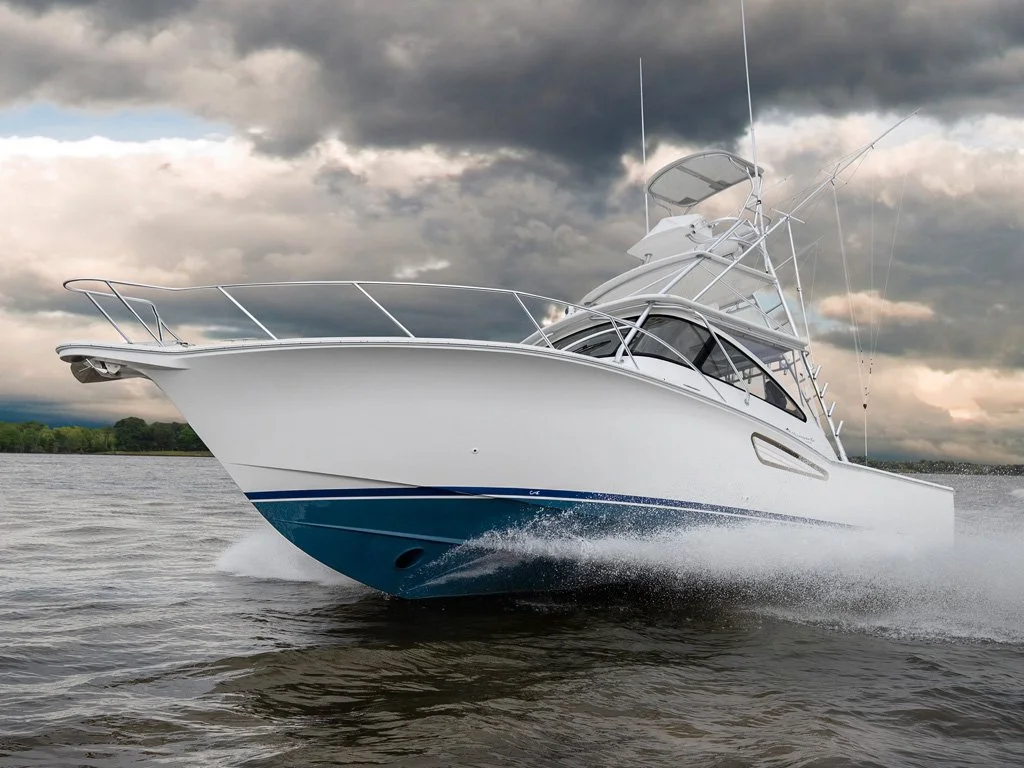

albemarle 36 express

Drawing upon the best features of our current model line up and combining them with feedback from our customers and dealers, our engineers designed the 36 Express to be rugged enough to take on the toughest seas and still provide the smooth, dry ride with the refined style that defines an Albemarle.

Built to be a flat-out fishing machine that is nimble enough to be managed by a crew of two, the 36 Express comes with an exhaustive list of standard high-quality, full-on fishing features. The centerline helm pod with 360-degree visibility and deep



gunwales make it perfect for the serious tournament angler or charter captain. The first-class living quarters boast numerous luxury upgrades and a well-appointed galley. The intelligent cabin configuration allows plenty of sleeping and entertaining options that make the 36 livable enough to spend a week heading for the next hot bite or just cruising. Proven to raise fish and Carolina tough, the 36 Express has already established itself as one of the most sought-after sportfishing boats on the water.



Hull Length 36'0"
L.O.A: 38'8"
Beam: 14'5"
Draft: 48"
Dry Weight: 25,000 lbs
Deadrise: 16 degrees
Fuel Capacity: 535 gal.
Transom Fishbox: 56 Gal.
Cockpit Fishbox: 57 Gal.
Livewell: 25 Gal.
Cockpit Size: 95 sq. ft.
Water Capacity: 95 gal.
Berths: 4 (5 Optional)
Height from waterline: 9'
Power: Twin Inboard Diesel



CONSTRUCTION

  • Accessible Gelcoated Bilge Areas

  • Bonded and Mechanically Fastened Hull, Deck, and Liner

  • Bottom Paint (Black) with Barrier Coat – True Waterline

  • Fiberglass Encapsulated Stringer System

  • Heavy Duty Vinyl Rub Rail with Stainless Steel Insert

  • Molded, Hand-Laid Fiberglass Construction with Premium Gelcoat Finish and Vinylester Resin

  • Non-Skid Deck and Cockpit

  • Painted Boot Stripe (True Waterline)

MECHANICAL

  • 95 Gallon Fresh Water Tank with Pressurized System

  • Acme CNC Machined 4 Blade Nibral Propellers

  • Acoustical and Thermal Engine Room Insulation

  • Automatic Fireboy Fire Protection System

  • Bilge Pumps (3) with Indicator Lights, Float Switches (3), High-water Alarms (3)

  • Bright White Gelcoat Finish in Engine Room

  • Bronze Rudders with Stainless Steel Shafts

  • Bronze Struts

  • Dripless Shaft Seals

  • Electronic Side-Mount, Single Lever Engine Controls

  • Engine Alarm System

  • Engine Hour Meters

  • Engine Room Blowers

  • Engine Synchronizers

  • Fiberglass Mufflers

  • Flanged Bronze Seacocks on All Through-Hulls Below Water Line

  • Fuel/Water Separator Filters

  • Gauge for Holding and Freshwater Tanks

  • Holding Tank with Dockside and Overboard Pumpout

  • Hot Water Heater (12 US gal)

  • Hydraulic Trim Tabs

  • Optimus Electronic Power Steering

  • Sea Strainers (External)

  • Stainless Steel Double Taper Shafts

  • Twin Fresh Water Cooled Diesel Engines

  • Underwater Exhaust





ELECTRICAL

  • 50 A Dockside Service with 50’ Shore Power Cord

  • 9 KW Onan Diesel Generator, Fresh Water Cooled with Remote Start and Gauge Panel

  • AC Electrical Distribution Panel with Line Voltage and Load Meter and Circuit Breakers

  • Battery Charger -85 Amp

  • Battery Paralleling

  • Bonded Electrical System with Transom Zinc Plate

  • Color-Coded Wiring System

  • DC Breaker with Uninterrupted Power to Bilge Pumps and High Water Alarms

  • DC Electrical Distribution Panel with Battery Voltage and Load Meters

  • Dual-Trumpet Air Horn

  • Electric Battery On/Off Switches, Vapor Proof

  • Ground Fault Receptacles in Galley, Head, Engine Room &Lazzarette

  • Heavy-duty Marine Batteries(6) with Boxes

  • LED Engine Room Lights

  • LED Interior Lighting Throughout

  • LED Navigation Lights

  • Prewiring for Electronics at Helm

DECK

  • Anodized Aluminum Bow Rail

  • Bomar Hatch with Screen and Shade

  • Bow Pulpit with Anchor Roller

  • Anchor Locker Hatch

  • Freshwater Windshield Washers (2)

  • Freshwater Wash Down Spigot in Anchor Locker

  • Molded Fiberglass Windshield Structure w/ 1-piece Front Glass Panel

  • Non-Skid Surface

  • Stainless Steel Bow, Stern and Spring Cleats

  • Stainless Steel Stern Hawse Pipes

  • Windshield Wipers (1)

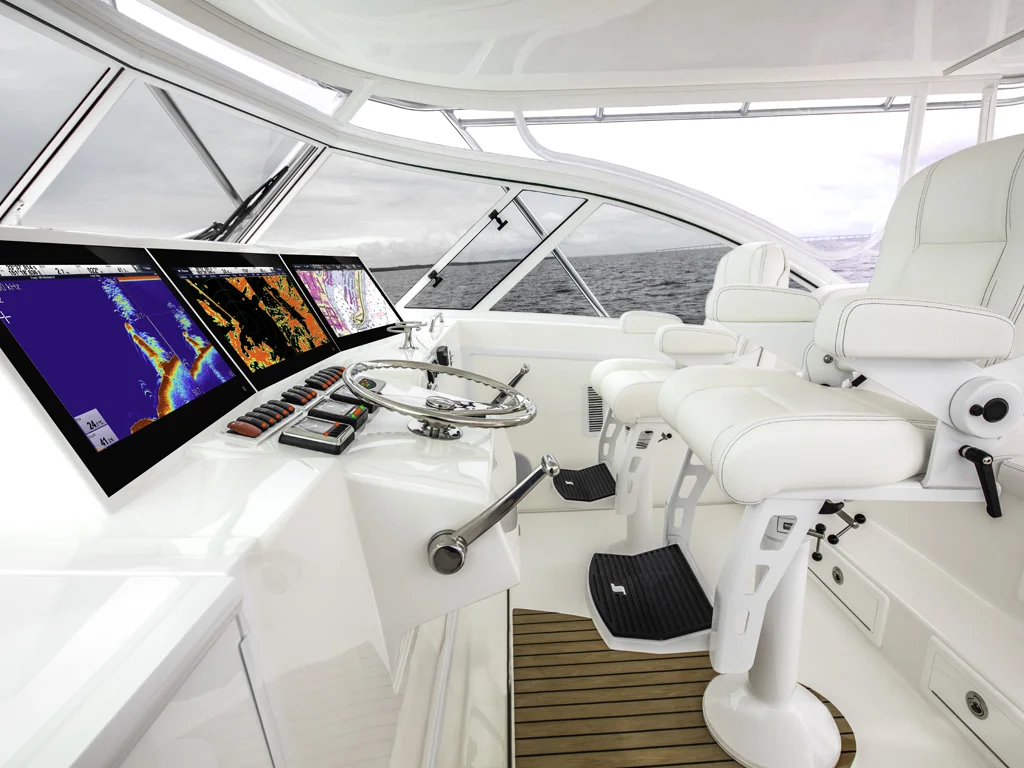

    HELM DECK

  • Bench Seating with Storage Below

  • Companion-Way Door

  • Complete Instrumentation with LED Lighting

  • Drink Holders

  • Flush Mounted Compass with Light

  • Molded Fiberglass Helm Deck, Hydraulically Lifted, with Full Length Gutters

  • Non-Skid Surface

  • Oversized Dash For Flush Mounted Electronics

  • “Palm Beach Style” Pod Helm

  • Pedestal Mounted Companion Seat

  • Raised Helm Station with Pedestal Mounted Seat

  • Rocker Style Switch Panel with Backlight

  • Stainless Steel Steering Wheel

  • Tackle Storage Cabinets with Drawers

  • Trim Tab Switches with Indicators



COCKPIT

  • 50 AMP Shore Power Connection

  • Aluminum Plate Laminated-in for Mounting Fighting Chair

  • Cable TV Connection

  • Day Hatch for Engine Room Access

  • Drink Holders

  • Fresh and Raw Water Washdown

  • Large, Insulated In-Deck Fishbox with Macerator

  • LED Courtesy Lighting Under Gunwales

  • Live Bait Well with “Calming Blue” Gelcoat and LED Light

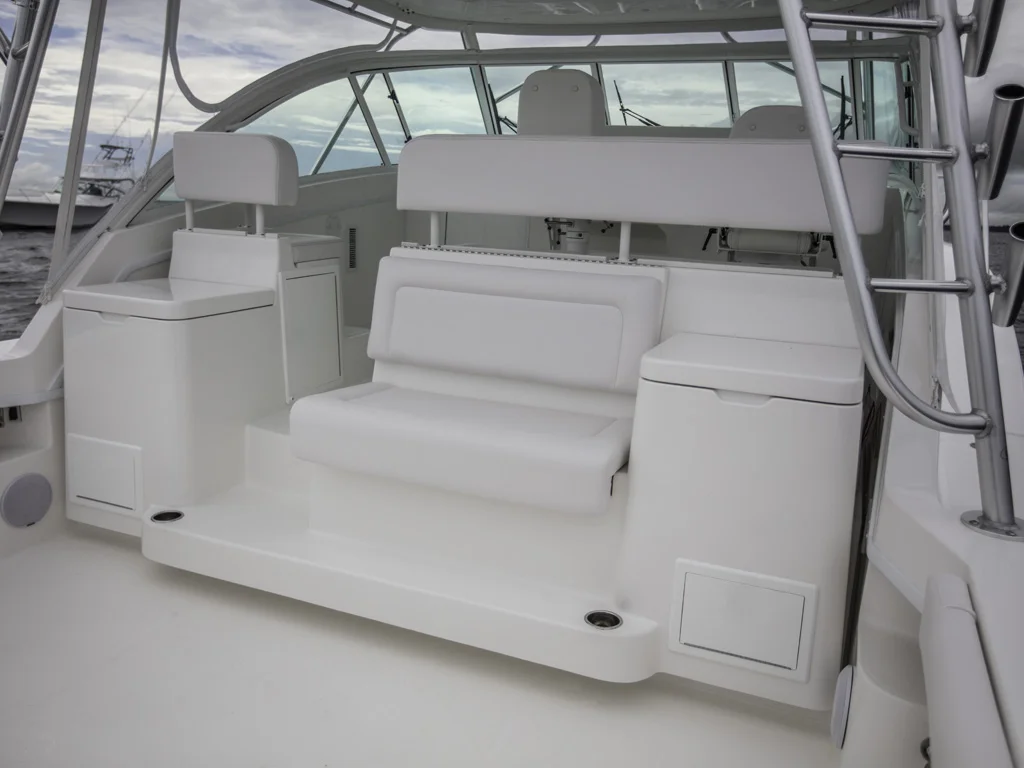

  • Mezzanine Style Aft-Facing Seating

  • Molded-In Boarding Steps, Port & Starboard

  • Scuppers for Self-Bailing

  • Stainless Steel Flush-mounted Rod Holders (4)

  • Tackle/Bait Prep Center including tackle Storage, Sink, Livewell/ Drink Box (Ready for Optional Freezer)

  • Transom Door

  • Transom Fishbox

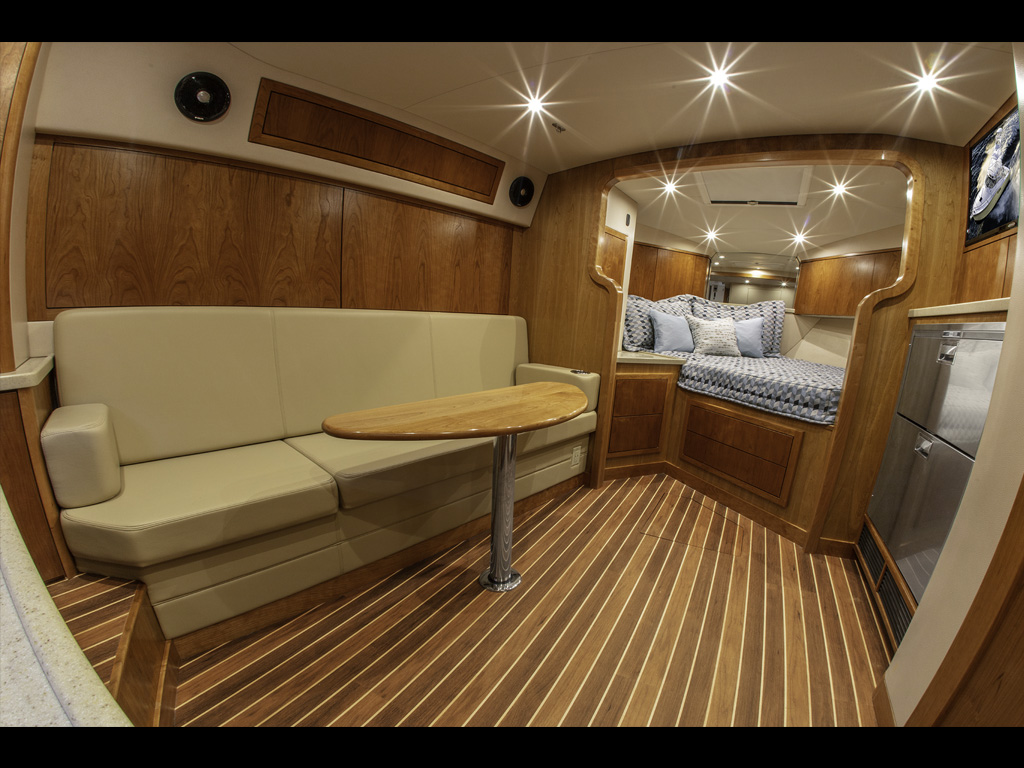

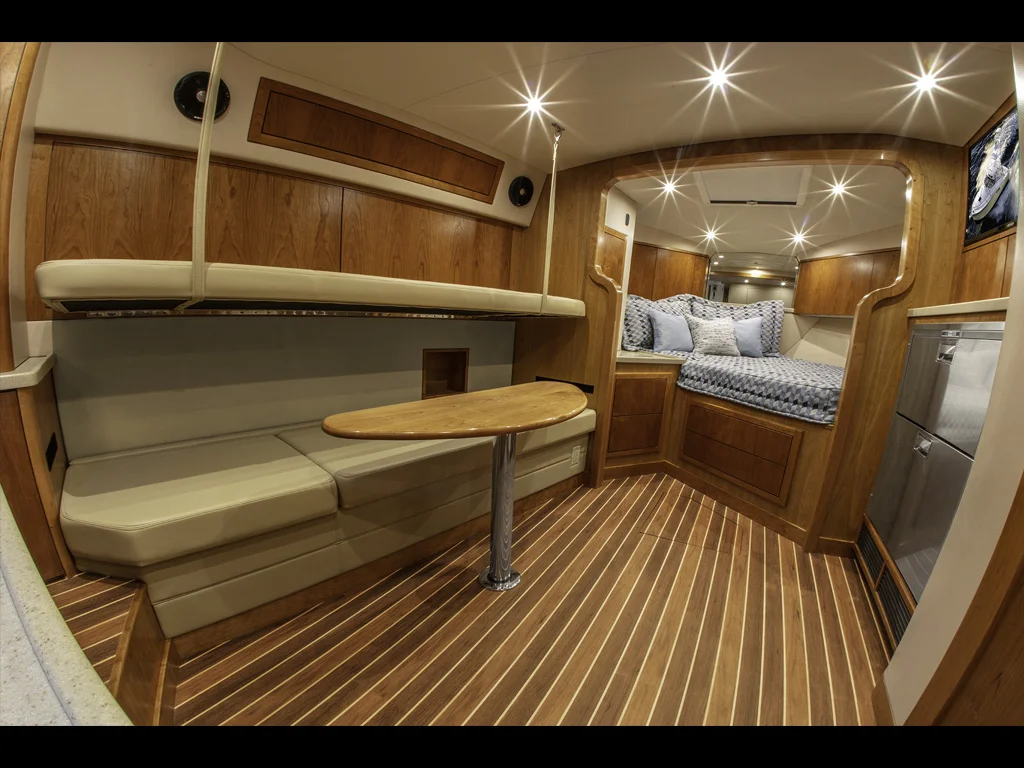

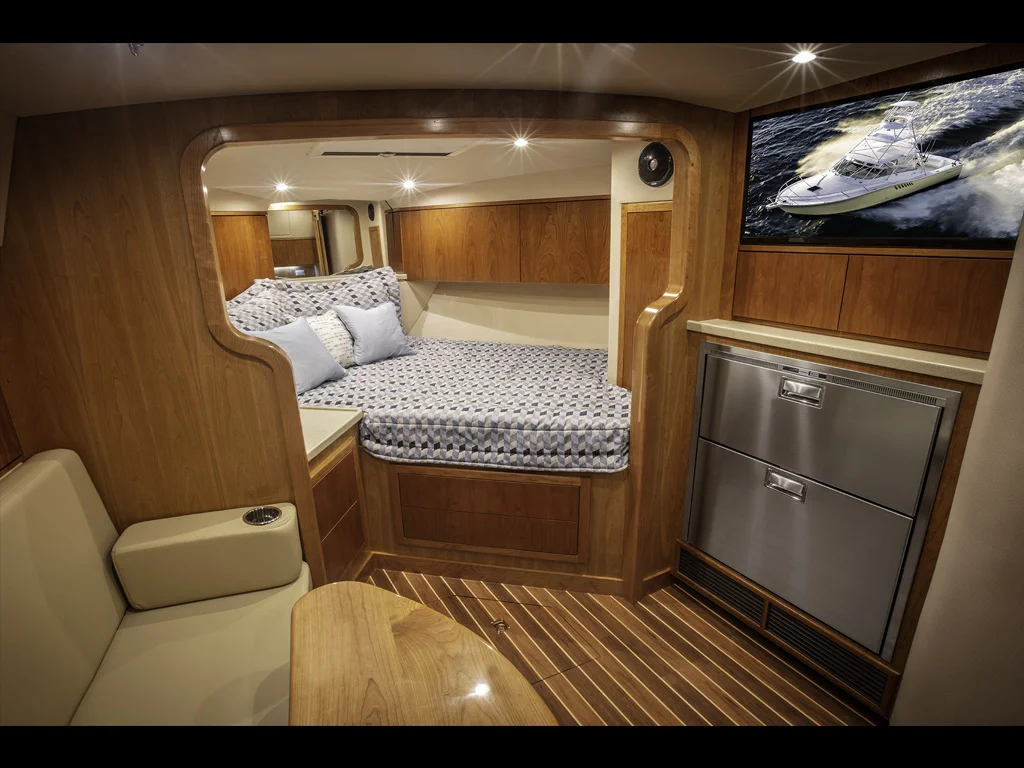

MAIN CABIN

  • Access to Bilge, Sealed

  • Carpeting Throughout

  • Chrome Finished Positive Catch Push Button Latches on All Cabinetry

  • Coast Guard Safety Kit

  • Custom Cherry Cabinetry with Satin Finish

  • Entertainment Center with TV and DVD/ Stereo System

  • Overhead Hatch with Screen and Shade

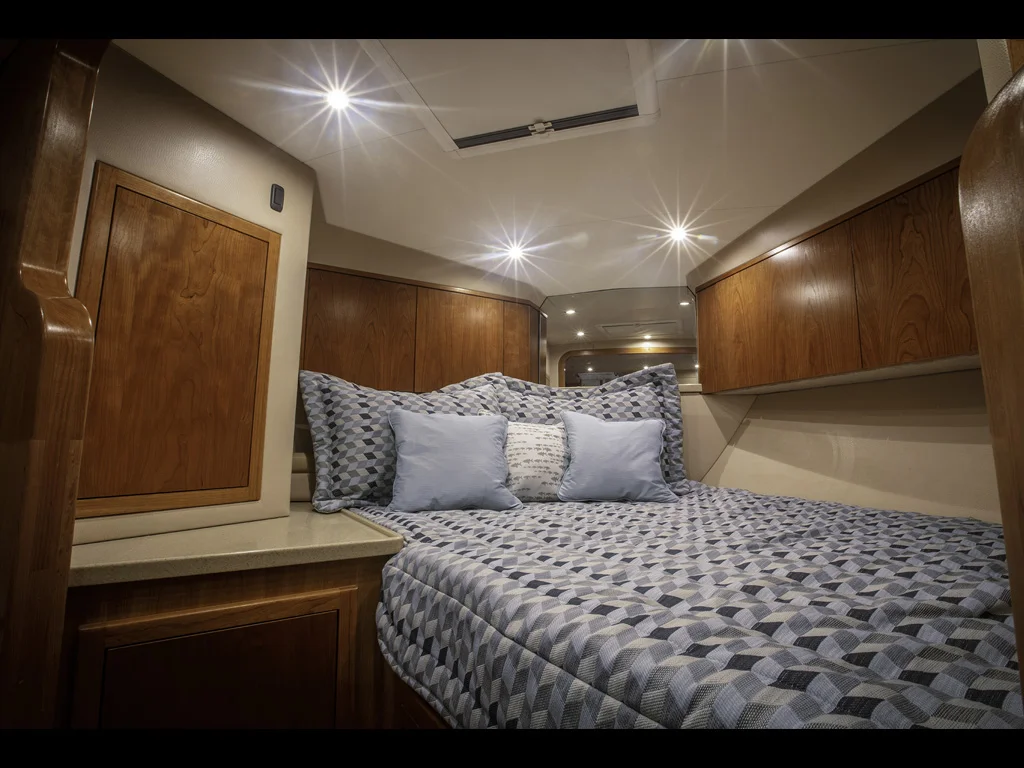

  • Queen Size Bed with 6-inch Spring Mattress

  • Recessed Indirect LED Lighting

  • Reverse Cycle Air Conditioning/ Heat System – 16,000 BTUs

  • Rod Storage Locker above Sofa

  • Salon Table

  • Storage Drawers

  • Twin Hanging Lockers

  • Upholstered Sofa, Converts to over/under bunk

  • Whisper Wall® Treatment Throughout

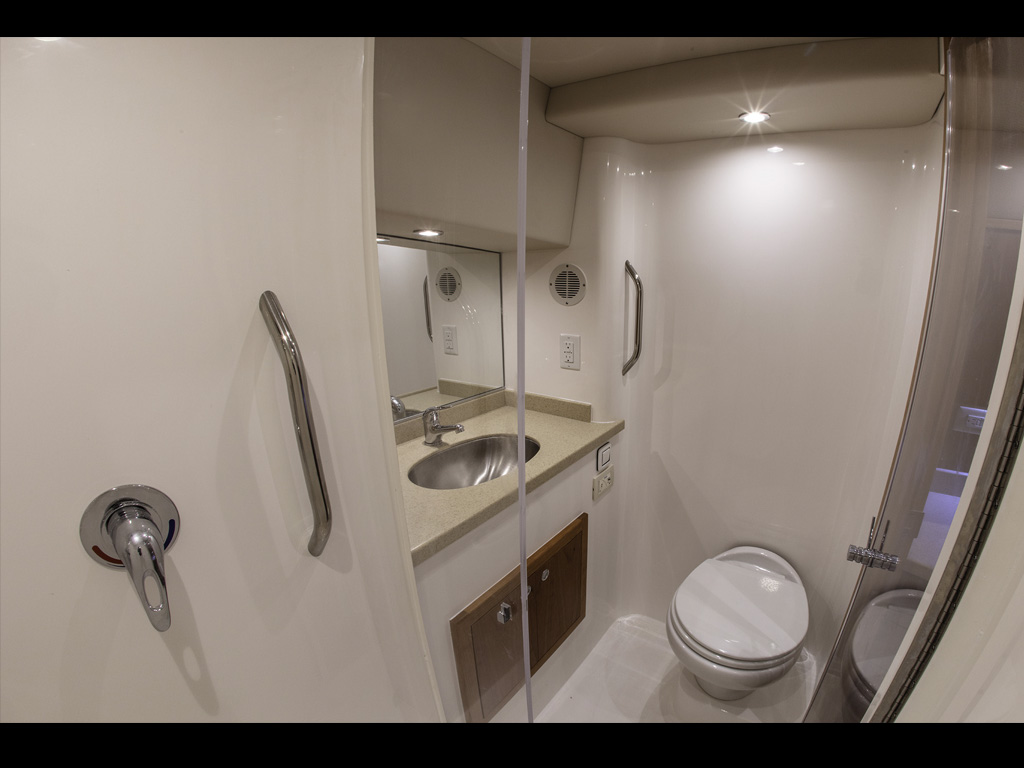

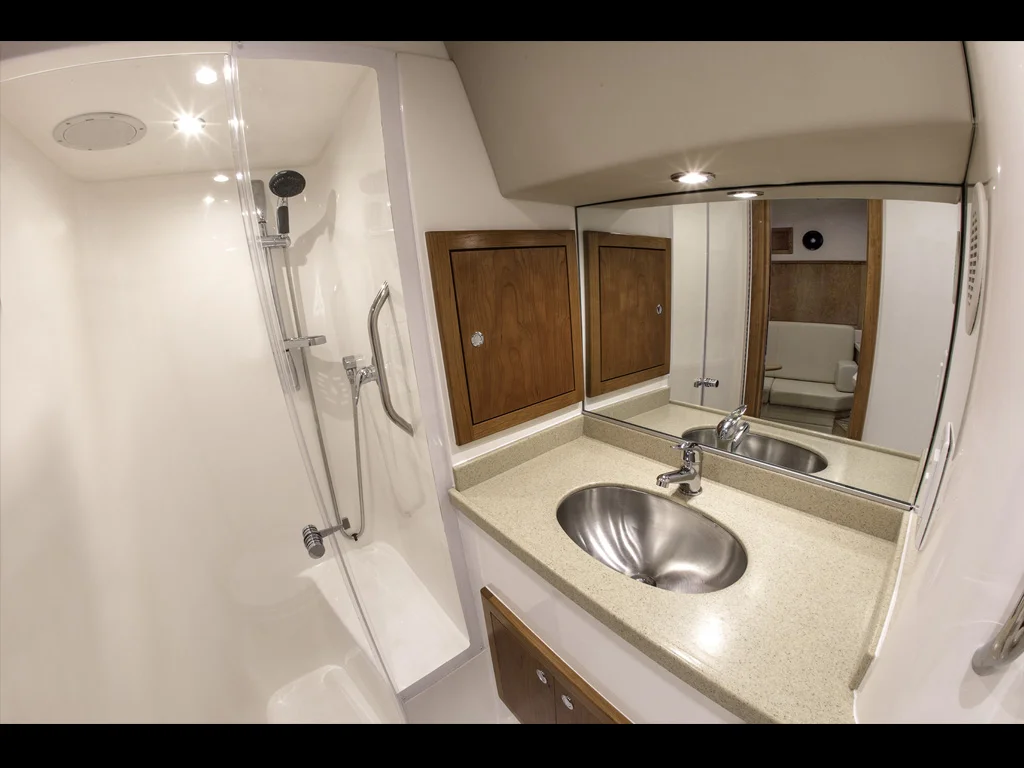

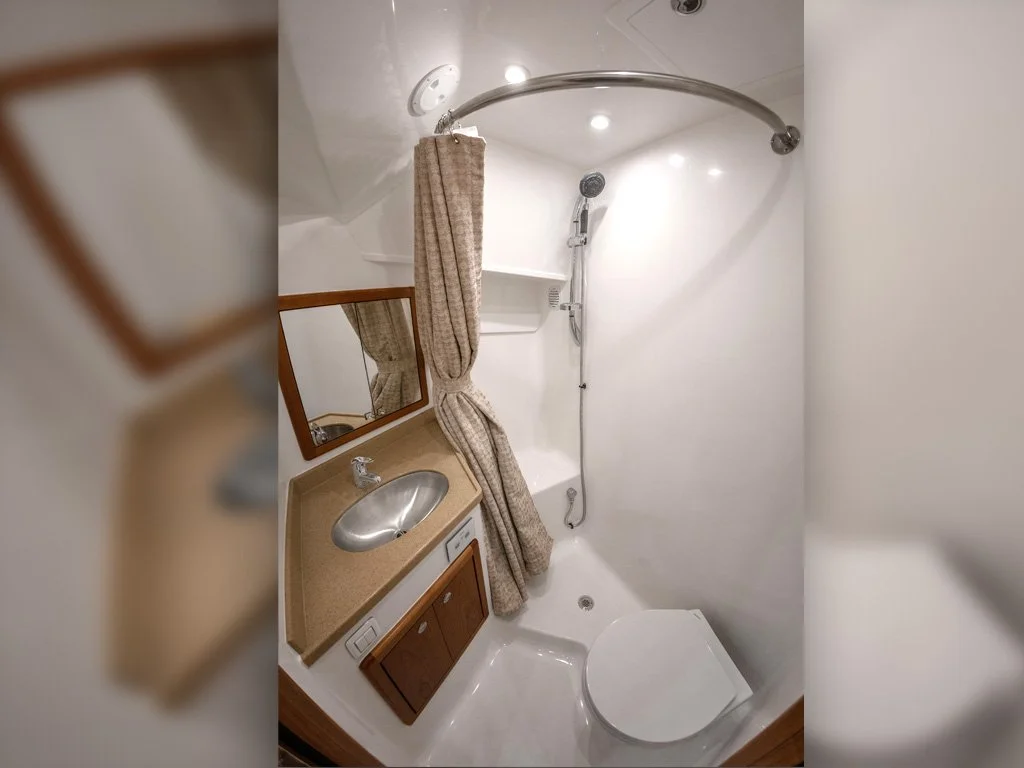

 HEAD

  • Electric Head

  • Exhaust Fan

  • Ground Fault Receptacle

  • LED Lighting

  • Medicine Cabinet

  • Mirror

  • Non-Skid Floor

  • Separate Stall Shower with Automatic Sump Pump

  • Solid Surface Vanity with Sink and Storage

  • Towel Bars

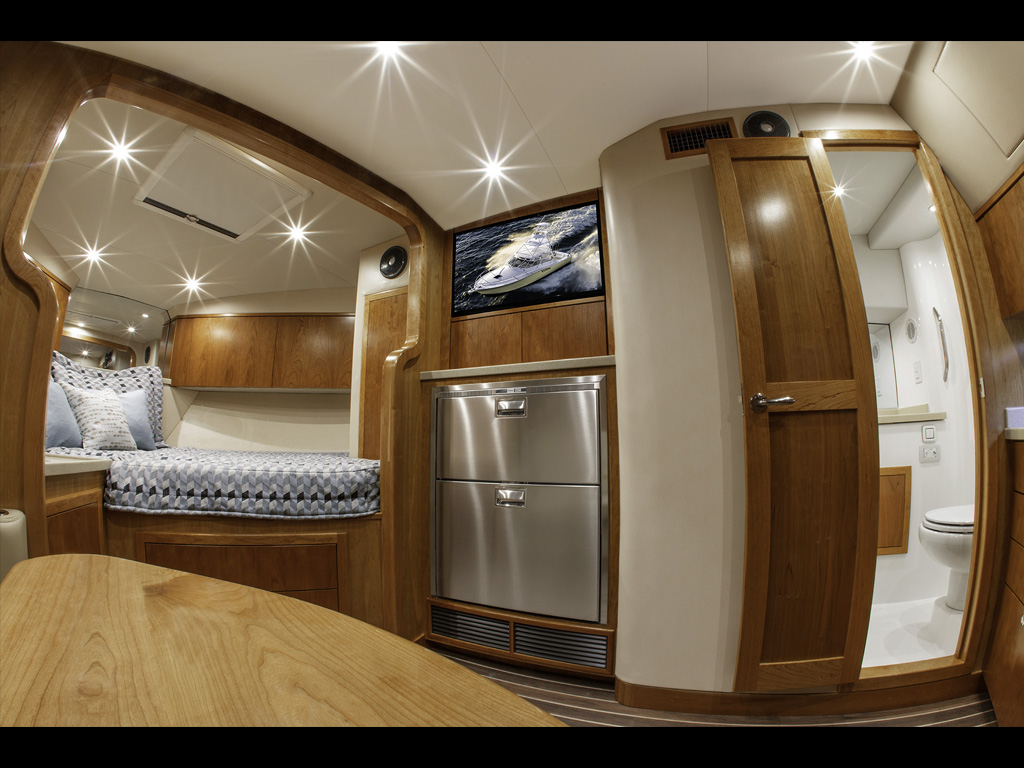

GALLEY

  • AC/ DC Refrigerator/Freezer Drawers

  • Electric Cook Top, Recessed, with Cover

  • LED Countertop Lighting

  • Microwave

  • Solid Surface Countertop with Sink

  • Storage Cabinets and Drawers



OPTIONS

  • Albemarle Hardtop w/ 4- Sided Enclosure

  • Albemarle Tuna Tower w/ 4-Sided Enclosure

  • Lee MX Pro Series Double Spreader Outriggers

  • Lee Center Rigger

  • Coaming Pads - Marine Vinyl w/ Sewn Corners

  • Extra Rod Holder(s) - Extra 30 degree rod holder mounted in gunwale

  • Aquamat Carpet for Helm Deck

  • Helm Cover

  • Helm Deck Air Conditioning(Separate Unit)

  • Teak and Holly Sole Throughout Cabin

  • Anchor Windlass w/ Rope, Chain, and Anchor

  • Cockpit Freezer

  • Additional Forward Berth Above Master

  • Oil Changer System

  • Swim Platform

  • Engine Driven Emergency Bilge Pump

  • Trolling Valves

  • Spare Set of Acme CNC Machined Propellers

  • Hull Color, Painted

  • Underwater Lights, Pair

  • Wet Sounds Upgrade w/ 3pr Premium Speakers, Amp, Subwoofer

  • Dash Mounted Waterproof Wireless Phone Charger

  • CE Certification

  • 220 V Electrical Conversion

  • Stidd Slimline Admirals Helm Chairs (2)

  • Pipewelders Half Tower

  • Pipewelders Tuna Tower

  • SeaKeeper Gyro Stabilization

    System

  • Bow Thruster 12V

POWER OPTIONS

  • Twin Cummins QSC 8.3 600 HP Diesels

  • Twin CAT C 8.7 650 HP Diesels

  • Twin Volvo D8 600 HP Diesels
